NLEVEL TRL 4 Demonstrator: The Real-time Energy Routing (RER) Architecture

Project Overview

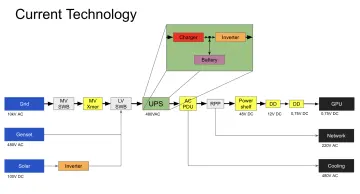

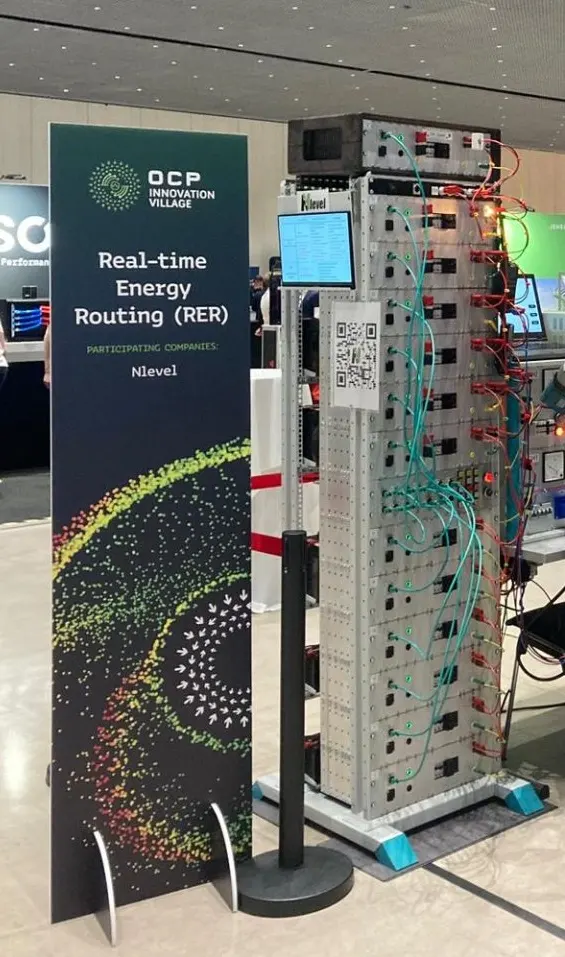

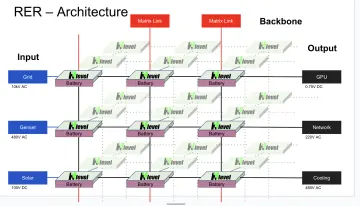

The exponential growth of AI, high-performance computing, and autonomous systems faces a hard physical ceiling: the "Analog Tax." This systemic inefficiency, thermal overhead, and reliance on single points of failure are inherent to legacy, proprietary power delivery. To solve this, NLEVEL introduces Real-time Energy Routing (RER)—a hardware-agnostic, software-defined "Layer 0" architecture that treats power not as a static analog flow, but as dynamic, addressable data. RER is not a closed proprietary product; it is a new infrastructure class and an open standard (the "TCP/IP of energy") designed to enable a global ecosystem where any manufacturer can build compatible hardware. This case study highlights NLEVEL’s TRL 4 Architecture Demonstrator, built to validate a Modular Open System Approach (MOSA) for power management. The functional array operates 12 identical Real-time Energy Routing Modules (REMs) in tandem with a master controller and a hot spare, validating several groundbreaking architectural capabilities: Simultaneous AC & DC Output: Handled natively from a single unit, eliminating dedicated inverters. True Bidirectional Flow: Simultaneous routing for both input and output across the N-dimensional energy matrix. Heterogeneous Source Blending: Natively combining AC grid power and DC solar on the exact same bus. Near Zero-Loss Demultiplexing: Switching discrete energy blocks to completely bypass traditional high-frequency PWM losses. Live Hot-Swapping: Demonstrating XN-redundancy by replacing modules on the fly without dropping the load. Targeting rack-level power delivery in OCP-aligned (Open Compute Project) datacenters as its primary beachhead, the RER demonstrator proves that dynamic allocation drastically reduces thermal overhead. Highly scalable and agnostic, this architecture provides the foundation for an interoperable, self-healing energy internet—scaling seamlessly from chip-level integration to EV mobility, smart grids, and mission-critica
